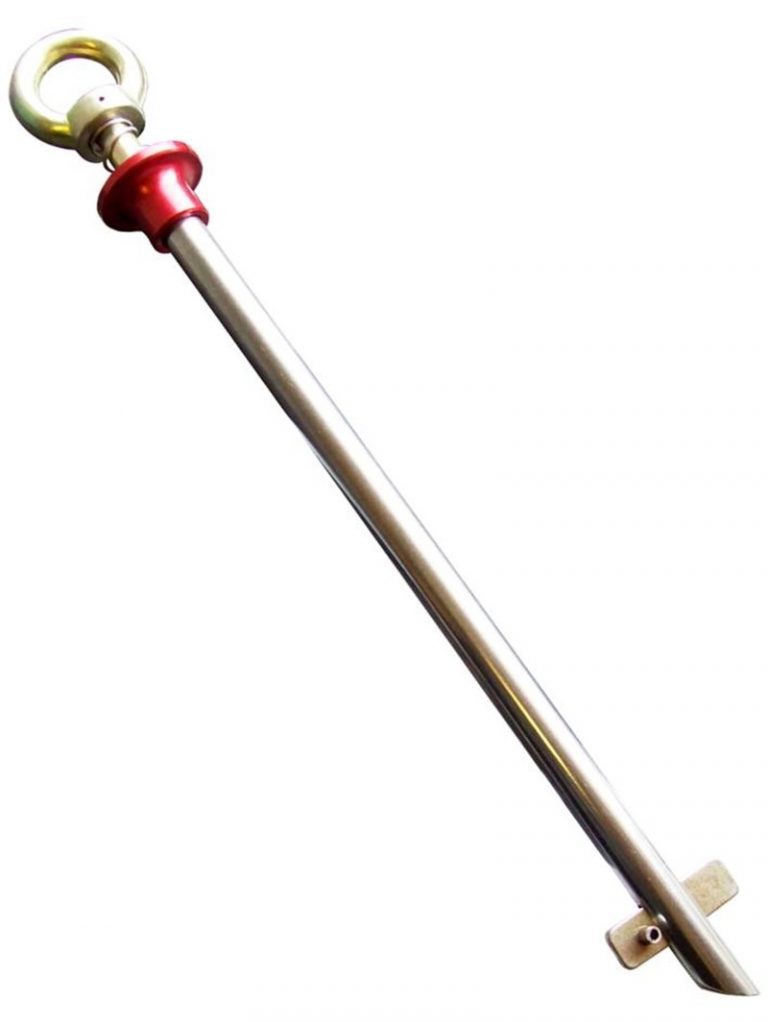

ISC GG201 Concrete Anchor – 330mm
Durham Lifting’s ISC Girder & Concrete Anchors are a quick and easy portable anchorage solution and can be used in the vertical or horizontal plane.
These anchors are operated by using two fingers to pull back the red collar. This action retracts the retention bar, allowing the device to be inserted in to the anchor hole. Once the device is engaged, the red collar can be released, the retention bar is engaged, fixing the device in the anchor hole. This Anchor device has been designed to provide secure anchor points through concrete structures, such as concrete flooring.
Conformance: CE EN 795
- (MBS) Minimum Breaking Strength (kN) 28 (MBS)
- Minimum Breaking Strength (lbf) 6294
- Required Beam Thickness (mm) 330
- Required Beam Thickness (Inches) 13
- Colour Red
- Weight (grams) 1160
- Weight (ounces) 41
