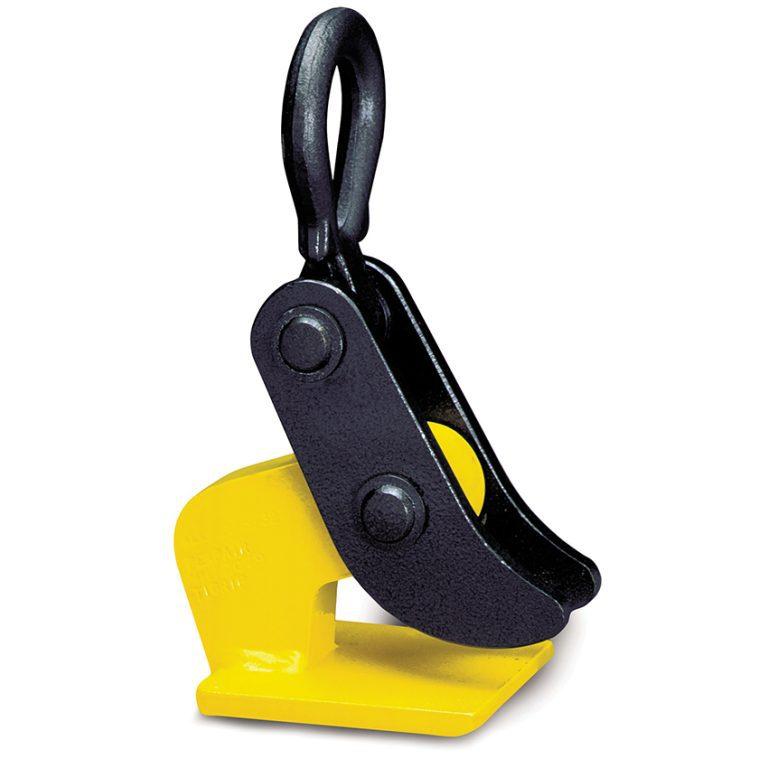

Camlock CH Horizontal plate clamps
Reliable & Secure Horizontal Lifting for Your Heavy Plates
At Durham Lifting, we understand the importance of safe and efficient lifting solutions. The Camlok CH Horizontal Plate Clamps are designed for horizontal lifting and transportation of individual plates with maximum safety and ease. These clamps are ideal for industries like construction, shipbuilding, steel manufacturing, and more.
Key Features:
Strong & Durable Construction: Built with robust, high-grade steel to ensure long-lasting performance, even in tough environments.
Secure Grip: Designed with a self-locking mechanism that provides a firm grip on the plate, reducing the risk of slipping during the lift.
Versatile Use: Perfect for lifting and moving horizontal steel plates of various sizes and weights. Suitable for a wide range of applications across different industries.
Safety Tested: All Camlok products, including the CH clamps, are tested to the highest standards to ensure safety during operation.
Range of Capacities: Available in a variety of working load limits (WLL) to suit your specific needs, ranging from 1000kg to 10000kg.
Easy Operation: These clamps are simple to use, with minimal setup required, ensuring fast, efficient handling.
Low Maintenance: Designed for durability, the Camlok CH clamps require minimal maintenance, saving time and costs in the long run.
Product Specifications:
Model | WLL (Working Load Limit) | Plate Thickness (mm) | Weight (kg) |
---|---|---|---|
CH 1 | 1000kg | 0-20mm | 4.5kg |
CH 2 | 2000kg | 0-30mm | 9kg |
CH 3 | 3000kg | 0-32mm | 12kg |
CH 4 | 4000kg | 0-40mm | 14kg |
CH 5 | 5000kg | 0-50mm | 17kg |
CH 6 | 6000kg | 0-60mm | 21kg |
CH 10 | 10000kg | 0-70mm | 33kg |
Why Choose Camlok Clamps?
- Proven Reliability: Backed by decades of experience in lifting solutions.
- Global Reach: Trusted by industries worldwide for quality and innovation.
- Comprehensive Support: Full documentation, customer support, and training available.
Applications in Industry
- Construction: Safely lift and transport steel plates on-site.
- Manufacturing: Essential for metal fabrication and assembly processes.
- Metal Production: Ideal for use in foundries and steel plants.
