Lifting & Rigging Equipment / Chain Slings / Grade 8
Established alloy chain system

Grade 8 chain slings G80 assemblies supplied across the UK

Grade 8 chain slings provide a proven and versatile option for industrial lifting. Durham Lifting can supply single and multi-leg G80 assemblies configured around the required working load limit, effective working length, sling angle and end fittings.

Request a Grade 8 QuoteView All Chain Slings
Grade 8 chain sling assembly
G80 chain systemA widely used chain grade with extensive fitting compatibility and a broad capacity range.
Published size range6 mm to 32 mm published range
Complete assemblyChain, master links, hooks and connecting components specified together.
Grade 8 capability

Broad component choice for industrial lifting

Published Grade 8 ranges cover chain sizes from 6 mm to 32 mm, with single, two, three and four-leg configurations available. Final capacity is confirmed against chain diameter, number of legs and working angle.

Working load limitConfirmed from chain size, grade, number of legs and working angle.
Effective working lengthSpecified bearing-to-bearing for the required lifting geometry.
Upper connectionMaster link arrangement matched to the crane hook and sling legs.
Lower fittingsCompatible sling hooks, safety hooks or project-specific connections.

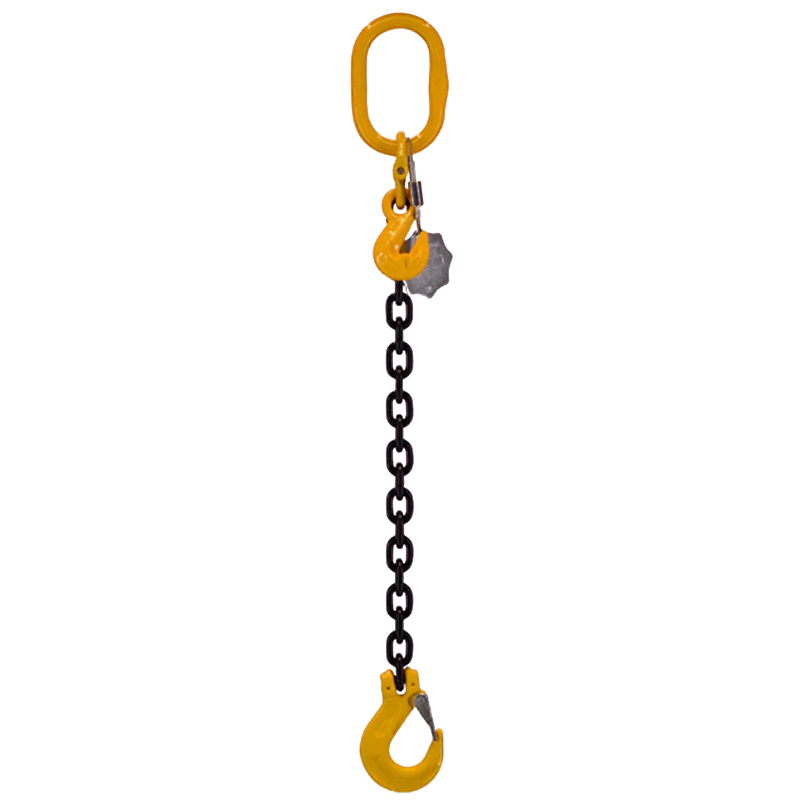

01 · Single point

Single-leg

One lifting leg with the required upper and lower connection.

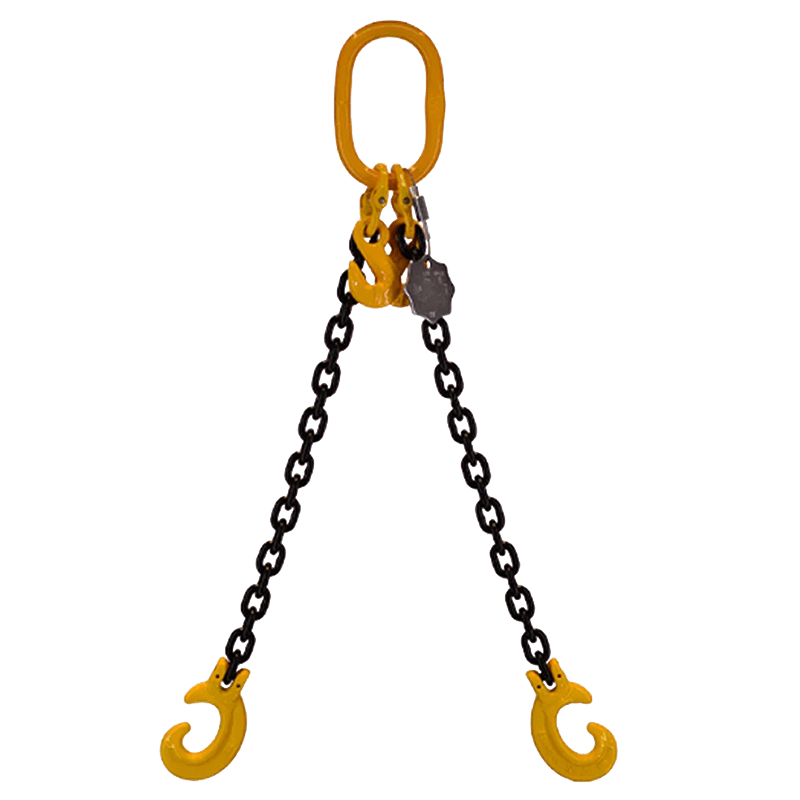

02 · Two points

Two-leg

Paired legs specified around the lifting angle and load geometry.

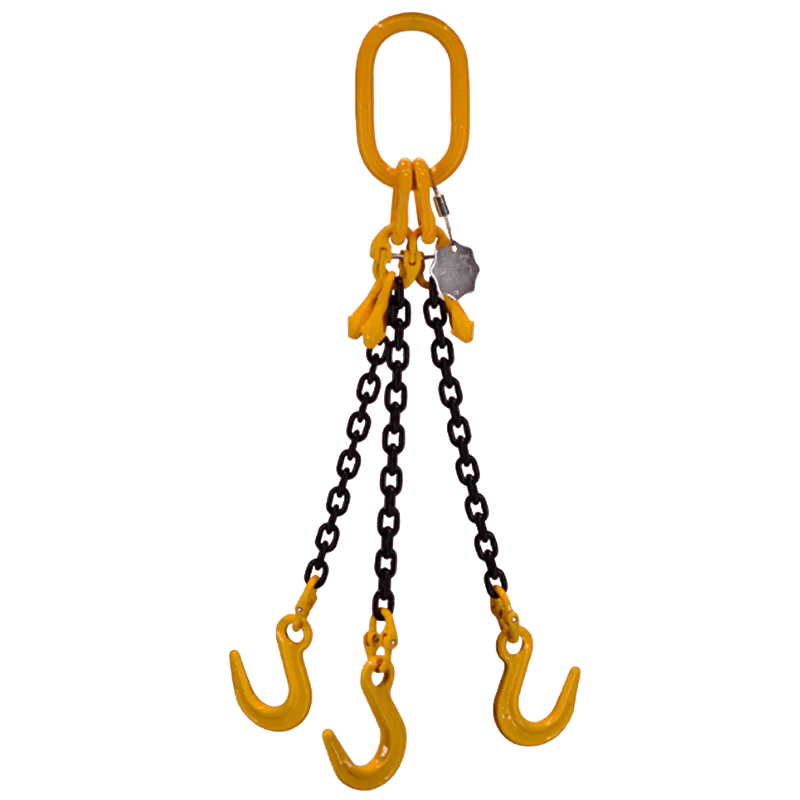

03 · Three points

Three-leg

Multi-leg assembly with compatible master-link arrangement.

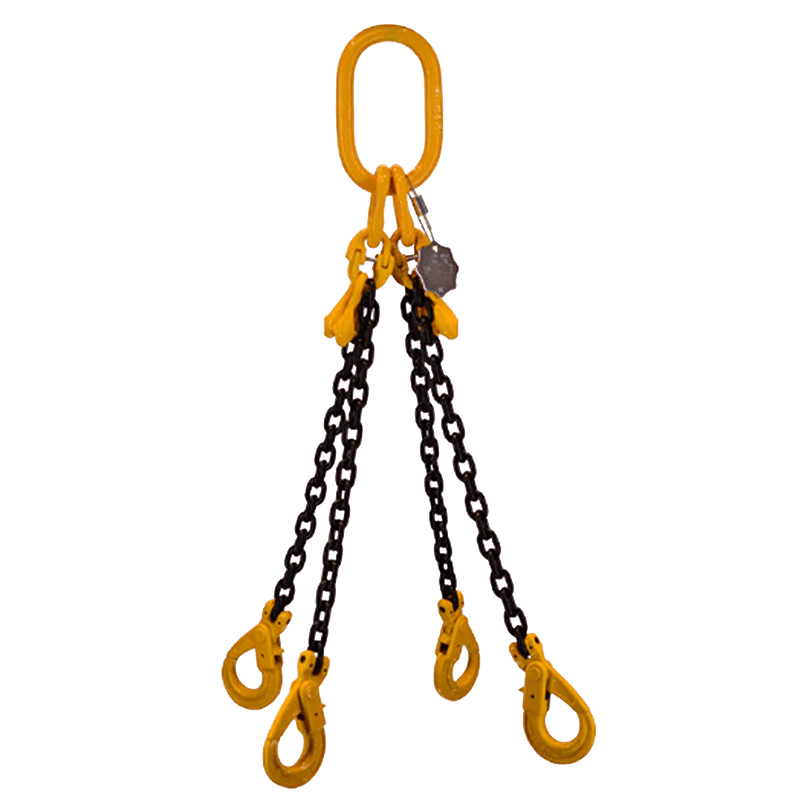

04 · Four points

Four-leg

Four lifting legs for suitable frames, structures and fabricated loads.

Specification support

Selected as a complete lifting assembly

Assemblies manufactured to BS EN 818-4 where applicable. Capacity must be established from the complete sling rather than chain diameter alone. Send the load, lifting points, intended angles and connection requirements so the correct assembly can be quoted.

Chain Slings HubLifting ShacklesProof Load Testing
Load and lifting pointsWeight, centre of gravity and connection spacing.
Leg arrangementNumber of legs, included angle and load distribution.
Working environmentIndoor, outdoor, temperature and other operating conditions.
Evidence requiredIdentification, certification and any testing requirement.
Common questions

Grade 8 chain sling FAQs

Final assembly selection should always be based on the lifting arrangement and compatible components. Durham Lifting can help turn the available site information into a clear quotation.

Can Grade 8 slings be supplied in multi-leg configurations?

Yes. Single, two, three and four-leg assemblies can be quoted where suitable for the load and lifting-point arrangement.

Do I need to know the chain diameter?

No. Start with the required WLL, leg arrangement, working length and lifting angle. Chain size is selected from the complete requirement.

Can different hooks and fittings be supplied?

Yes. Compatible master links, hooks, connectors and shortening devices can be selected as part of the assembly.

Can a replacement sling be matched?

Send the existing identification tag, photographs and dimensions. The team can review the available information and confirm what else is needed.

Need a Grade 8 chain sling?

Send the WLL, number of legs, working length, fittings and required date.

Request a Grade 8 Quote
