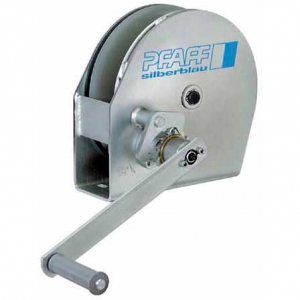

LB Wire Rope Winch

Models Available:
Stainless Steel 150kg – 900kg
Zinc 150kg – 1200kg
Free Wheel 150 – 1200kg

Our best-selling range of winches designed for maximum versatility & efficiency.

Please note that all Pfaff winches are supplied without wire rope.  Please contact our sales team with your wire rope requirements.

Free Wheel 150 – 1200kg
Model Art.No. Stainless Steel Version Capacity 1st Layer Kg Capacity Top Layer Kg Rope Diameter mm Useable Rope Length 1st Layer m Useable Rope Length max m Lift per Crank Rotation mm Required Crank Effort daN Weight Without Rope Kg
LB 250 VA 30239017 250 125 4 1.8 19.5 125 20 4.8
LB 650 VA 40239012 650 290 6 1 20 55 22 7.6
LB 900 VA 30239013 900 320 7 1 26 45 24 12.1
Zinc 150 – 1200kg
Model Art.No. Zinc Plated Version Capacity 1st Layer Kg Capacity Top Layer Kg Rope Diameter mm Useable Rope Length 1st Layer m Useable Rope Length max m Lift per Crank Rotation mm Required Crank Effort daN Weight Without Rope Kg
LB 150 VZ 30239016 150 75 4 0.8 11 125 17 4.2
LB 350 VZ 30239015 350 170 4 1.8 20 125 25 4.8
LB 650 VZ 40239004 650 290 6 1 20 55 22 7.3
LB 900 VZ/ARA 40239006 900 400 7 0.8 14 58 24 10
LB 1200 VZ/ARA 40239008 1200 430 7 1 26 45 24 12.1
Free Wheel 150 – 1200kg
Model Art.No. Free Wheeling Version Capacity 1st Layer Kg Capacity Top Layer Kg Rope Diameter mm Useable Rope Length 1st Layer m Useable Rope Length max m Lift per Crank Rotation mm Required Crank Effort daN Weight Without Rope Kg
LB 900 VZ/ARA 40239007 900 400 7 0.8 14 58 24 10
LB 1200 VZ/ARA 40239009 1200 430 7 1 26 45 24 12.1
