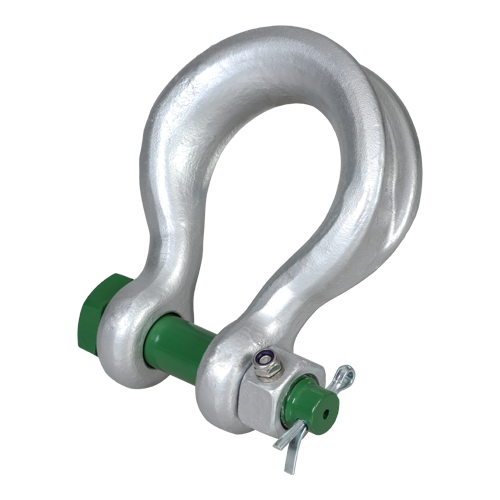

Green Pin Sling Shackle FN - P-6013
High load capacity bow shackle with safety bolt and fixed nut.
Range: 7 Tonne to 150 Tonne
The Green Pin® Sling Shackle FN is a high load capacity, bow shackle with a safety bolt and a fixed nut. The Sling Shackle FN is an excellent choice for heavy lifting projects due to the shape of the shackle crown.
Available for sale and hire. Fast dispatch from the UK.
Durham Lifting are a Green Pin® shackle distributor.
Description
Description
- Material – Bow and pin alloy steel, Grade 8, quenched and tempered
- Safety – Factor MBL equals 5 x WLL
- Finish – Shackle bow painted silver, pin painted green (7 up to 55 ton shackles are hot dipped galvanized)
- Temperature Range -20°C up to +200°C
- Certificates – Test Certificate is supplied as standard, also upon request a cert of basic raw material manufacturer certificate and/or EC declaration of conformity can be supplied.
Shop by Product Type:
| W.L.L (tonnes) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | i (mm) | j (mm) | k (mm) | l (mm) | Weight |
| 7 | 22 | 22 | 46 | 19 | 32 | 96 | 64 | 153 | 115 | 110 | 19 | 41 | 2 |
| 12.5 | 28 | 28 | 61 | 25 | 44 | 121 | 82 | 197 | 151 | 146 | 24 | 54 | 4 |
| 18 | 35 | 35 | 69 | 30 | 52 | 147 | 102 | 239 | 165 | 180 | 29 | 64 | 7 |
| 30 | 40 | 42 | 90 | 35 | 69 | 165 | 126 | 279 | 207 | 200 | 34 | 79 | 13 |
| 40 | 55 | 51 | 109 | 45 | 80 | 200 | 140 | 331 | 252 | 235 | 38 | 97 | 21 |
| 55 | 60 | 57 | 115 | 55 | 85 | 250 | 160 | 396 | 304 | 270 | 45 | 100 | 30 |
| 75 | 70 | 70 | 140 | 70 | 105 | 290 | 186 | 467 | 359 | 345 | 54 | 120 | 48 |
| 125 | 85 | 80 | 155 | 85 | 130 | 365 | 220 | 569 | 428 | 410 | 64 | 150 | 92 |
| 150 | 94 | 95 | 180 | 89 | 140 | 390 | 250 | 627 | 441 | 455 | 50 | 170 | 140 |
| 200 | 110 | 105 | 200 | 100 | 150 | 480 | 276 | 744 | 474 | 508 | 50 | 205 | 205 |
| 250 | 126 | 120 | 228 | 110 | 170 | 540 | 300 | 842 | 528 | 600 | 60 | 240 | 264 |
| 300 | 135 | 134 | 245 | 122 | 185 | 600 | 350 | 926 | 594 | 620 | 70 | 265 | 360 |
| 400 | 160 | 160 | 295 | 145 | 220 | 575 | 370 | 964 | 686 | 715 | 80 | 320 | 580 |
| 500 | 170 | 180 | 330 | 160 | 250 | 680 | 450 | 1107 | 763 | 810 | 90 | 340 | 780 |
| 600 | 190 | 200 | 350 | 170 | 275 | 740 | 490 | 1207 | 828 | 913 | 100 | 370 | 980 |
| 700 | 200 | 215 | 392 | 190 | 300 | 750 | 540 | 1257 | 878 | 993 | 100 | 400 | 1360 |
| 800 | 218 | 230 | 420 | 200 | 325 | 850 | 554 | 1395 | 959 | 986 | 110 | 420 | 1430 |
| 900 | 242 | 255 | 466 | 220 | 350 | 850 | 584 | 1454 | 1040 | 1050 | 120 | 440 | 1650 |
| 1000 | 260 | 270 | 490 | 240 | 380 | 855 | 614 | 1497 | 1116 | 1176 | 120 | 460 | 2970 |
| 1250 | 285 | 300 | 510 | 260 | 430 | 930 | 650 | 1620 | 1193 | 1275 | 150 | 530 | 3700 |
| 1500 | 295 | 320 | 550 | 280 | 460 | 950 | 680 | 1710 | 1278 | 1350 | 160 | 560 | 4000 |
