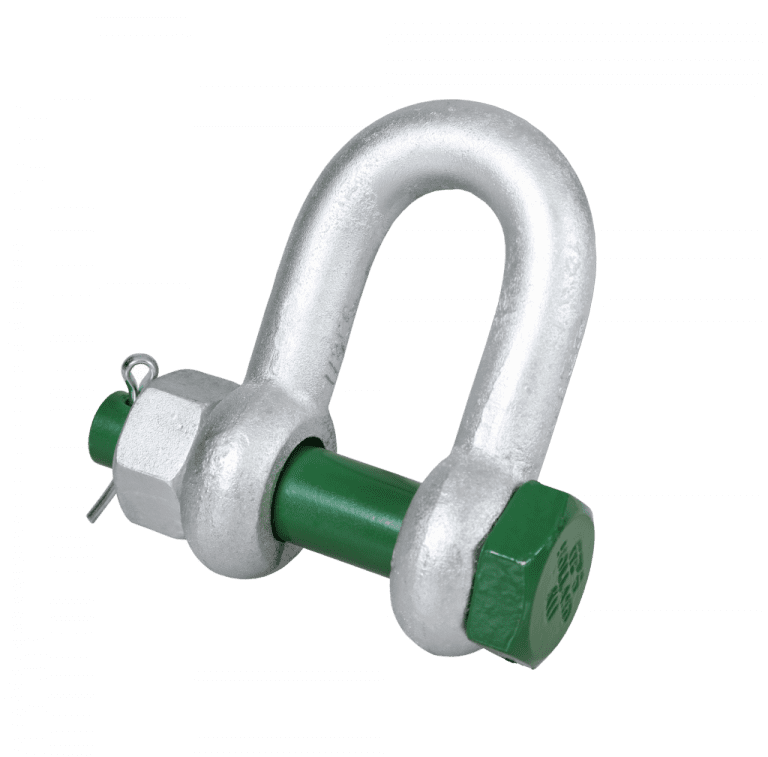

Green Pin Standard Dee G-4153

with Safety Bolt, Nut and Securing Split Pin.
Range: 2 Tonne  to 85 Tonne

Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin.

Available for sale and hire. Fast dispatch from the UK.
Durham Lifting are a  Green Pin® shackle distributor.

It is vital that the correct Shackle is chosen and all entities are considered. Please refer to the drawing below for product dimensions, and then select your shackle using the table.

working load limit (WLL)bow
dia
pin
dia
eye
dia
width
eye
width
inside
length
inside
lengthlength
bolt
width
nut

weight

(tonnes)A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
I
(mm)
Kg
each
213.516341322438182130.39
3.251619401627519798170.67
4.75192246193159112114191.08
6.5222552223673134130221.66
8.5252859254385154150252.46
9.5283266284790167166273.40
12323572325194180178304.51
13.53538803557115209197336.10
173842883860127230202197.63
25455010345741492712492313.25
35505711150831713052692618.53
42.5576513057951903453012925.94
556570145651052033763303235.33
857583162731272294273803952.97
