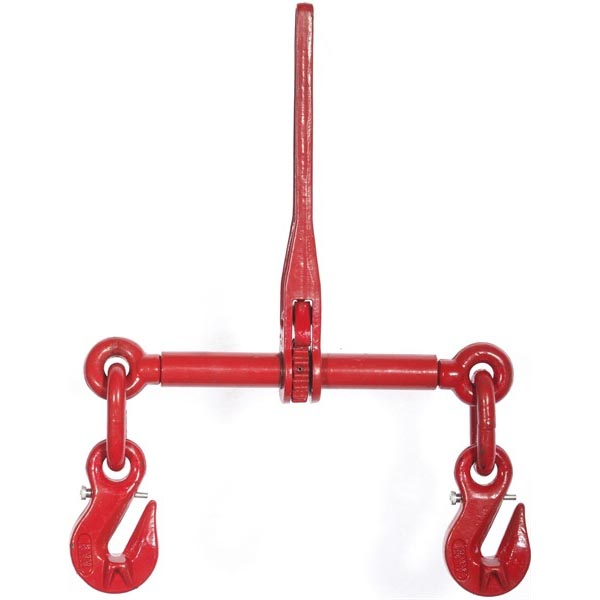

Ratchet Type Loadbinder EN 12195 Part 3
Durham Lifting’s Loadbinders are designed with an ergonomic, easy-to-use handle for simple, single-hand use, and are manufactured from drop forged or cast steel.
Contact our sales team for load binder chain quotations.
Description
Technical Data
Description
- Meets the Performance Requirements of EN 12195 Part 3
- Drop Forged, Alloy Steel, Quenched and Tempered
- Painted Finish
- Fitted with Reinforced Hooks and Special Safety Devices
- Marked with Size, Lashing Capacity and Manufacturers Mark
Technical Data
| Dimensions | |||||||||
| Code | Chain Dia (mm) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | Take Up (mm) |
| P0101 | 5/16 – 3/8 | 630 | 580 | 485 | 406 | 275 | 275 | 13 | 95 |
| P0102 | 10-13 | 715 | 662 | 548 | 475 | 320 | 310 | 15 | 114 |
| Technical Data | |||||||||
| Chain Dia | WLL (Ibs) | Proof Load (lbs) | MBS (Ibs) | Weight (kgs) | |||||
| 5/16 – 3/8 | 5400 | 10800 | 19000 | 2.81 | |||||
| 3/8 – 1/2 | 9200 | 18400 | 33000 | 5.08 | |||||
