Straightpoint ATEX / IECEX Wireless & Cabled Load Pin – Load Sensor

Durham Lifting’s Straightpoint range of Load Measurement Pins are available ATEX and IECEx approved to Ex ia II T4 Ga for use in zones 0, 1 and 2 hazardous environments (gas) and is designed for the on and offshore oil and gas, chemical and other industries with challenging hazardous areas.  The Straightpoint hazardous area range of Load Measurement Pins (LMP’s) are designed for use in applications where an end of line load cell cannot be used an integrated solution is required.  Often a customised solution they are manufactured from high tensile stainless steel and are normally supplied complete with an anti-rotation plate as a wireless solution with range of up to 700m or 2300 feet.

This latest range of Load Pins utilise easily sourced Lithium AA Batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life eliminates issues associated with rechargeable battery pack charging, failure and replacement.

Note: Please advise cable configuration on order – Radial or Axial Pin exit. ATEX is only available as a wireless option. If you require an ATEX Wireless Load pin to a particular size and design, contact us.

Load Pin General Description

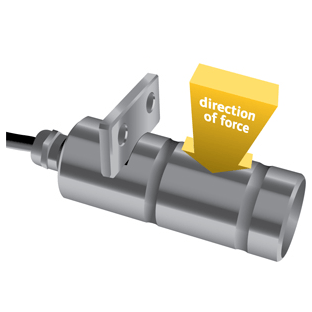

A load measuring pin senses the force applied across it, via strain gauges installed within a small bore through the centre of the pin. Two grooves are machined into the outer circumference of the pin to define the shear planes, which are located between the forces being measured.

Load Pin Environmental Protection
As the instrumented area of the load pin is totally contained within a small central bore, the load pin sensor is inherently waterproof. Manufactured from special stainless steels, fitted with welded or `O’ ring sealed end caps and with special attention to the signal cable glanding, a very high operating reliability can be guaranteed even for load pins operating underwater.

Load Pin Typical Locations
If a pin exists within a defined load path or can be fitted to experience a force, then a Straightpoint Load Pin can be installed to monitor that load. The sketches below show typical locations for load pins.

Load Pin Locking Systems
A load-measuring pin needs to be securely locked into position in order to fix its orientation with respect to its associated assembly. This needs to be fixed, both in the axial and rotation modes, to ensure that accurate and repeatable results are obtained from the system.

A standard load pin is designed to sense the force in one direction only. A force at right angles to that force will produce a zero output from the sensor.

Load Pin Cable & Connector Arrangements
The signal cable can normally exit from the load pin to suit the installation and space requirements. Emphasis should be placed on the protection of the cabling system from accidental damage during installation and use. A plug and socket breakdown can be incorporated at the load pin if required. Extra protection can be provided over the standard polyurethane sheathed cable in the form of hydraulic hose. This provides excellent protection with the advantage of associated fittings being readily available.
