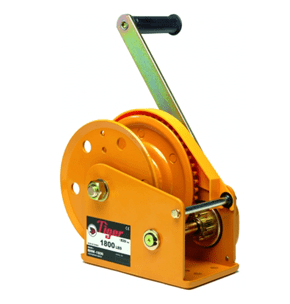

Tiger Brake Hand Winch BHW

Durham Lifting’s Tiger Brake Hand Winch BHW is a high quality multi-purpose winch. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009.

PRODUCT CODEPULLING CAPACITY (LBS/KG)LIFTING CAPACITY (LBS/KG)GEAR RATIOHUB DIAMETER (MM)HANDLE LENGTH (MM)UNIT WEIGHT (KG)CABLE DIAMETER (MM/INCH)CABLE STORAGE CAP. (M)STRAP STORAGE CAP. (M)TECHNICAL DRAWING
1ST LAYER3RD LAYERLAST LAYER

BHW-0800-CR800/360800/360560/254400/1804.1:1Ø401603Ø4.0/Ø5/32369.1 BHW-0800-CR
BHW-1200-CR1200/5501200/550864/392600/2754.1:1Ø502103.3Ø4.8/Ø3/16238.5 BHW-1200-CR
BHW-1800-CR1800/8001800/8001239/562900/40005:01Ø703208Ø6.4/Ø1/42414.1 BHW-1800-CR
BHW-2600-CR2600/11802600/11801861/8441300/59010:01Ø8032010.3Ø8.0/Ø5/161810.6 BHW-2600-CR

Winch Straps

PRODUCT CODEDESCRIPTIONWIDTH (MM)THICKNESS (MM)BREAKING LOADAVAILABLE FOR
TG-486 meters with safety hook481.22068.5 kgsBHW-800 & BHW-1200
TG-549 meters with safety hook541.42864 kgsBHW-1800
TG-609 meters with safety hook601.74136 kgsBHW-2600

Wire Rope

DescriptionDiameter (mm)Beaking Load (kg)Available For
30mtrs with Safety Hook41270BHW-800
20mtrs with Safety Hook52000BHW-1200
22mtrs with Safety Hook63000BHW-1800
16mtrs with Safety Hook84500BHW-2600
