Tiger TLH Industrial Lever Hoist

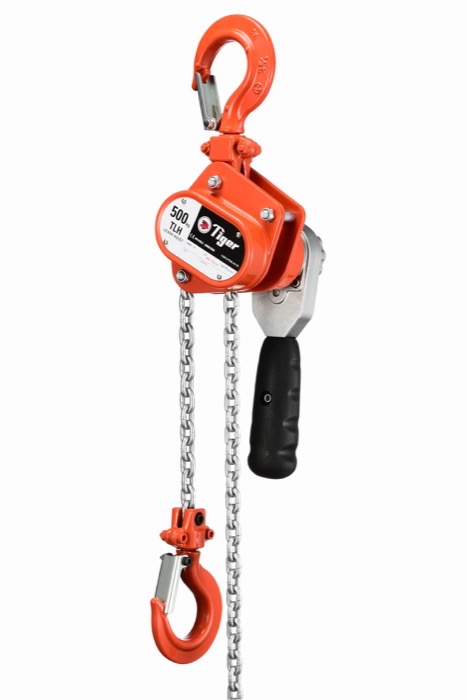

Durham Lifting’s Tiger TLH11 Heavy Duty Lever Hoists are lightweight, compact and of rugged construction, with the handle, gear case and brake cover made entirely of pressed steel, producing strong resistance to impact damage.

Using only the highest quality materials precisely machined throughout ensures the TLH11 is the ideal hoist for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.21, AS1418.2 and SANS 1636.

Our 250kg and 500kg comes with useful belt bags.

Due to continual product development, dimensions, weight and specification may change without prior notice.  Please check with a member of our Sales Team when ordering.

Safety Brake
The highly efficient twin pawl brake, works instantly when the operation is stopped and securely holds the load. Designed and 100{e36f5a91c998de831b71657463ebcebc0f1922fe4adb9f636df27af744ef8d81} tested to hold a 5{e36f5a91c998de831b71657463ebcebc0f1922fe4adb9f636df27af744ef8d81} load of the rated capacity. The bonded friction discs are free of asbestos and achieve highly efficient braking.

Load Chains
Durham Lifting only use the highest quality alloy, calibrated load chains in Grade 80 (T) or 100 (V). Also available with stainless steel load chain.

Hooks
Drop forged and heat treated alloy hooks are furnished with heavy duty latch kits that fully engage into the nose of the hook offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance. Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.

Grease
High performance premium quality grease allows the TLH11 hoists to be certified for use within a temperature range of -40°C to +50°C far exceeding the requirements of current standards.

Chain End Stops
User friendly heavy duty end stops make it easy for the operator to position the chain whilst “freewheeling” but most importantly gives complete compliance to all known standards.

Mechanical Efficiency
All major components are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.

Finish
The TLH11 is finished in our high quality powder coat paint offering excellent corrosion protection. Proof Load Tests: Every lever hoist is fully tested to 1.5 times its rated capacity.

                      DIMENSIONS (MM)         LOAD          CHAIN  STANDARD    HOL (M) MASS @ STD HOL (KG) MASS FOR EXTRA METRE HOL (KG) TECHNICAL DRAWING
Product Code Capacity (Tonne) Effort (KG) A B C D E F F1 F2 DIA NO. OF FALLS
LH-0025 0.25 30 60 156 245 82 63 26 22 TBA 4.0 1 1.5 2.2 0.35  LH-0025
LH-0050 0.5 30 94 156 280 103 67 29 25 36 4.0 1 1.5 2.9 0.35  LH-0050
LH-0075 0.75 23 128 240 275 158 99 33 28 44 6.3 1 1.5 7.4 0.86  LH-0075
LH-0150 1.5 26 154 360 320 172 104 38 34 48 7.1 1 1.5 10.1 1.07  LH-0150
LH-0300 3.0 38 182 360 400 195 108 40 35 54 10.0 1 1.5 18.2 2.17  LH-0300
LH-0600 6.0 40 242 360 570 195 108 54 50 68 10.0 2 1.5 29.3 4.34  LH-0600
LH-1000 10.0 47 370 360 630 195 108 60 54 90 10.0 3 1.5 46.0 6.54  LH-1000
 Hook Technical Data
Capacity (Tonne) Collar Measurements (mm) Hook Thickness at Point Shown in Diagram (mm) Hook Throat Opening (mm) “EZ Check” Measurement (mm)
A B C D E F
0.25 TBA TBA TBA TBA TBA TBA
0.5 8 13.5 19 15 29 45
0.75 8 13.5 19 15 29 45
1.5 10 15.5 26 21 38 59
3.0 12.5 20 37 32 40 76
6.0 19 30 43 36 54 86
10.0 20 33 52 48 60 121
