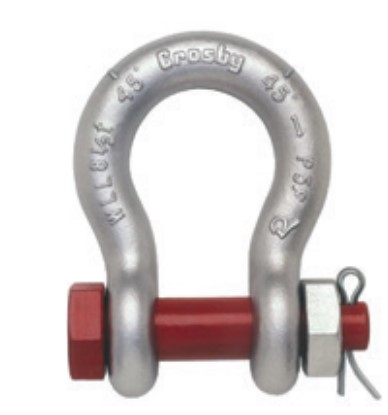

Crosby® 2130 Carbon Bolt Type Anchor Shackles
Durham Lifting are an authorised stocking distributor of Crosby® Shackles
Durham Lifting’s Crosby Bolt Type Anchor shackles with
thin head bolt – nut with cotter pin. Meets the performance requirements of Federal Specification RR-C 271G, Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
Bolt-Type Shackles can be used in any application where round pin or screw pin shackles are used. In addition, they are recommended for permanent or long term installations and where the load may slide on the shackle pin causing the pin to rotate.
The bolt-type shackle’s secondary securement system, utilizing a nut and cotter, eliminates the requirement to tighten pin before each lift or movement of load.
Look for the Red Pin®, the mark of genuine Crosby quality.
Available for sale from Durham Lifting. Fast dispatch from the UK.
- Capacities 1/3 thru 55 metric tons, grade 6.
- Forged – Quenched and Tempered, with alloy pins.
- Working Load Limit and grade “6” permanently shown on every shackle.
- Hot Dip galvanized or self coloured.
- Sizes 3/8 inch and below are mechanically galvanized.
- Fatigue rated.
- Shackles 25t and larger are RFID EQUIPPED.
- Shackles can be furnished proof tested with certificates to designated standards, such
as ABS, DNV, Lloyds, or other certification. Proof testing and certificate available when
requested at the time of order, charges will apply. - Approved for use at -40° C (-40° F) to 204° C (400° F).
- All 209 and 210 shackles can meet charpy requirements of 42 Joules(31 ft•lbf) avg. at
-20° C (-4° F) upon special request. - Meets or exceeds all requirements of ASME B30.26.
NOTE: Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit. For Working Load Limit reduction due to side loading applications. Individually Proof Tested with certification. Furnished in Anchor style only and furnished with eyebolts for handling.
