Hydraulic Accessories
Lifting Claws
In conjunction with the corresponding hydraulic cylinder, a lifting claw represents a compact, lightweight and versatile lifting unit.
Piston Plates
Can be screwed into the piston thread cylinders. They reduce surface pressure and prevent the pistons from sinking into the ground.
Base Adaptors
The use of extension tubes adds to the versatility of the standard cylinders.

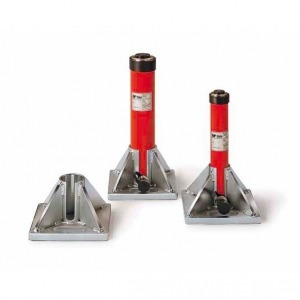

Support Plates
Used to spread the load, they protect the cylinders from tippling or sinking into the ground.

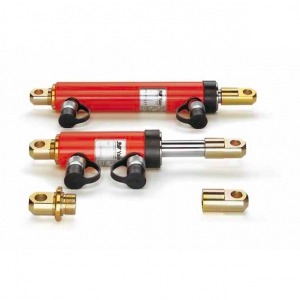

Clevis Eye Mounting
Screwed onto the piston and bottom of the hydraulic cylinder, in those cases where conditions require pivoting of the cylinder.
Model | Description | Suitable For | Weight kg |
AYS-10 | LIFTING Claw, max 5t | YS10/…. | 0.9 |
AYS-15 | LIFTING Claw, max 8t | YS15/…. | 1.3 |
AYS-23 | LIFTING Claw, max 12t | YS23/…. | 3.8 |
AYS-53 | Base adaptor, 5t | YS5/…. | 0.5 |
AYS-54 | ext. tube 125mm 5t | YS5/…. | 0.9 |
AYS-55 | ext. tube 250mm 5t | YS5/…. | 1.5 |
AYS-56 | ext. tube 500mm 5t | YS5/…. | 2.8 |
AYS-103 | Base adaptor, 10t | YS10/…. | 0.7 |
AYS-104 | ext. tube 125mm 10t | YS10/…. | 1.2 |
AYS-105 | ext. tube 250mm 10t | YS10/…. | 2.2 |
AYS-106 | ext. tube 500mm 10t | YS10/…. | 3.9 |
AYS-107 | ext. tube 750mm 10t | YS10/…. | 5.9 |
AYS-153 | Base adaptor, 15t | YS15/…. | 0.9 |
AYS-154 | ext. tube 125mm 15t | YS15/…. | 1.6 |
AYS-155 | ext. tube 250mm 15t | YS15/…. | 2.9 |
AYS-156 | ext. tube 500mm 15t | YS15/…. | 4.9 |
AYS-157 | ext. tube 750mm 15t | YS15/…. | 7.9 |
AYS-102 | Piston plate, round | YS10/…. | 1.5 |
AYS-152 | Piston plate, round | YS15/…. | 1.8 |
AYS-232 | Piston plate, round | YS23/…. | 2.2 |
AYS-101 | Support base plate | YS10/…. | 10.5 |
AYS-151 | Support base plate | YS15/…. | 10.5 |
AYS-231 | Support base plate | YS23/…. | 10.5 |
AYH – 5-1 | Cylinder base | YH5/30 | 0.3 |
AYH – 5-2 | Piston | YH5/80 | 0.3 |
YH5/150 | |||
AYH – 10-1 | Cylinder base | YH10/30 | |
AYH – 10-2 | Piston | YH10/80 | 0.6 |
YH10/150 | 0.6 | ||
YH10/250 | |||
AYH – 20-1 | Cylinder base | YH20/50 | 2.1 |
AYH – 20-2 | Piston | YH20/150 | 2.1 |
YH20/250 |
