Yale YH-10/150 Hydraulic Cylinder

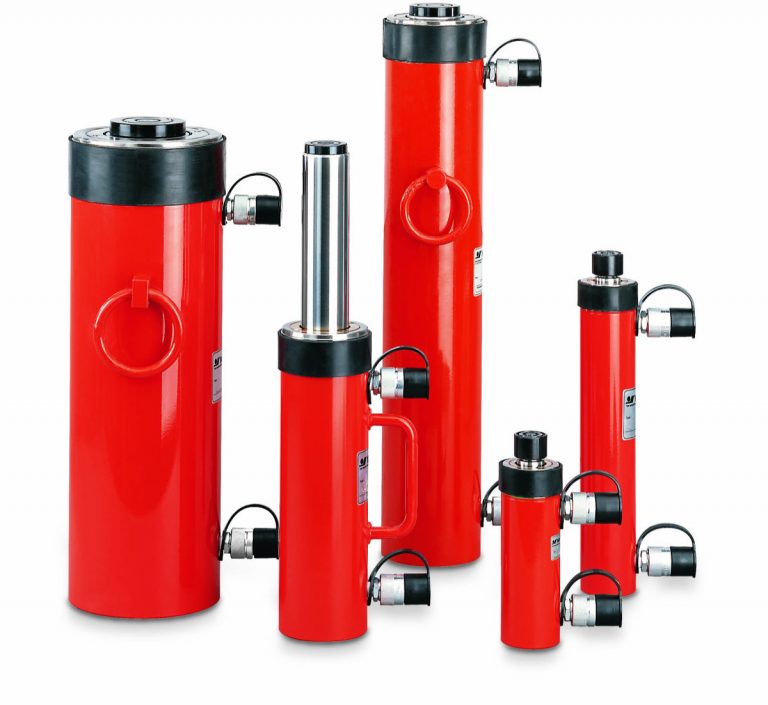

Durham Lifting’s Yale YH-10/150 Hydraulic Cylinders are extremely robust double-acting cylinders which are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed. Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required.
Capacity: 5-200 Tonne
Operating Pressure: 700 bar
Models Available: YH5/30, YH5/80, YH5/150, YH10/30, YH10/80, YH10/150, YH10/250, YH20/50, YH20/150, YH20/250, YH30/200, YH30/350, YH50/150, YH50/350, YH50/500, YH70/150, YH70/350, YH100/50, YH100/150, YH100/350, YH100/500, YH200/150, YH200/350, YH200/500.
- Yale ChroMo-Design.
- Operating pressure max. 700 bar.
- Double-acting with hydraulic return.
- Long bronze piston guidings.
- Piston strokes from 30 up to 500 mm.
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
- Double bronze bearing of the hard chromium plated piston.
- Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod.
- Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
- Interchangeable hardened saddle.
- Dirt wiper protects against dirt.
- Oil port thread 3/8 NPT.
- Incl. 2 female coupler halves model CFY-1.
- From model YH-30/200 with carrying handle.
- From model YH-50/350 with 2 lifting rings.
Includes
- Saddle
- Mounting threads
- Two female coupler halves
- Dust Caps
| Model | Cylinder Size Tonne | Capacity kN | Stroke mm | Closed Height mm | Weight kg |
| YH 5/30 | 5 | 50 | 30 | 160 | 2.5 |
| YH 5/80 | 5 | 50 | 80 | 210 | 3.3 |
| YH 5/150 | 5 | 50 | 150 | 280 | 4.4 |
| YH 10/30 | 10 | 100 | 30 | 175 | 4.0 |
| YH 10/80 | 10 | 100 | 80 | 225 | 5.0 |
| YH 10/150 | 10 | 100 | 150 | 295 | 6.7 |
| YH 10/250 | 10 | 100 | 250 | 395 | 9.0 |
| YH 20/50 | 20 | 200 | 50 | 195 | 7.0 |
| YH 20/150 | 20 | 200 | 150 | 310 | 11.0 |
| YH 20/250 | 20 | 200 | 250 | 410 | 14.0 |
| YH 30/200 | 30 | 300 | 200 | 325 | 19.0 |
| YH 30/350 | 30 | 300 | 350 | 510 | 27.0 |
| YH 50/150 | 50 | 500 | 150 | 325 | 27.0 |
| YH 50/350 | 50 | 500 | 350 | 525 | 42.0 |
| YH 50/500 | 50 | 500 | 500 | 685 | 52.0 |
| YH 70/150 | 70 | 700 | 150 | 335 | 37.0 |
| YH 70/350 | 70 | 700 | 350 | 540 | 56.0 |
| YH 100/50 | 100 | 1000 | 50 | 265 | 49.0 |
| YH 100/150 | 100 | 1000 | 150 | 365 | 64.0 |
| YH 100/350 | 100 | 1000 | 350 | 565 | 94.0 |
| YH 100/500 | 100 | 1000 | 500 | 725 | 118.0 |
| YH200/150 | 200 | 2000 | 150 | 410 | 137.0 |
| YH200/350 | 200 | 2000 | 350 | 620 | 198.0 |
| YH200/500 | 200 | 2000 | 500 | 780 | 244. |
| Article no. | 4025092150453 |
| Description | YH-10/150 Yale Hydraulic Cylinder |
| Description | double acting 700 bar |
| Weight (kg) | 6.7 |
| Lift (mm) | 150 |
| Cylinder size, (t) | 10 |
| Oil volume max., (cm³) | 218 |
| Capacity Zug, (kN) | 45 |
| Pressure gauge | als Zubehör |
| Pressure relief valve | ja |
| Effective plunger area, (cm²) | 14.3 |
| Effective plunger area pull, (cm²) | 6.4 |
